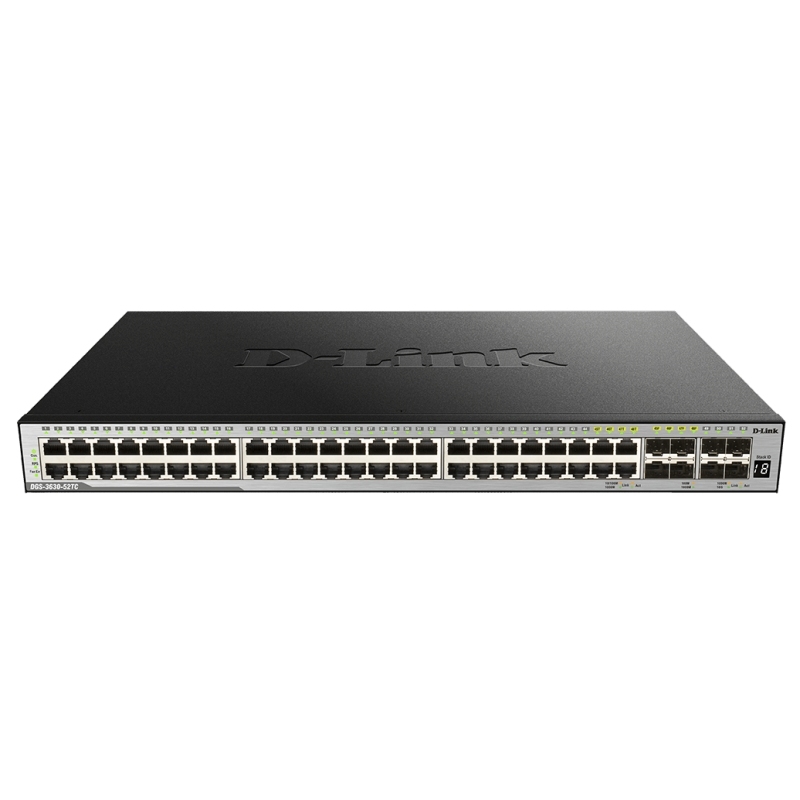

Estas son las especificaciones técnicas de D-Link DGS-3630-52TC Switch L3 44xGB 4xSFP 4x10GB de la marca D-Link la cual fabrica Switches armario además de otros componentes:

Marca	D-Link
Modelo	DGS-3630-52TC/SI
Puertos	– 44 x 10/100/1000BASE-T – 4 x 1000BASE-T/SFP combo – 4 x 10 GbE SFP+ – Console Port: RJ45 and Mini USB console ports for out-of-band CLI management – Management Port: 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management – Alarm Port: 1 x RJ-45 – USB Port: 1 x USB 2.0 Type A
Despempeño	– Switching Capacity: 176 Gbps – Maximum Packet Forwarding Rate: 130.95 Mpps – Packet Buffer: 4 MBytes – MAC Address Table: 68K entries – IPv4 Routing Table: 16K entries – IPv6 Routing Table: 7K entries – IPv4 Forwarding Table: 32K entries – IPv6 Forwarding Table: 16K entries – Jumbo Frame Size: 12 KBytes
Características	Stackability – Physical Stacking – Virtual Stacking/Clustering of up to 32 units L2 Features – MAC Address Table : up to 68K entries4 – Flow Control – Spanning Tree Protocol – Jumbo Frame: up to 12 Kbytes – 802.1AX Link Aggregation – ERPS (Ethernet Ring Protection Switching) version 2 – Port Mirroring – Flow Mirroring – VLAN Mirroring – RSPAN – L2 Protocol Tunneling VLAN – 802.1Q – 802.1v Protocol-based VLAN – Double VLAN (Q-in-Q) – Port-based VLAN – MAC-based VLAN – Subnet-based VLAN – Private VLAN – VLAN Group – Multicast VLAN (ISM VLAN for IPv4/IPv6) – Voice VLAN – Auto Surveillance VLAN – VLAN Trunking – GVRP: Up to 4K dynamic VLANs – Asymmetric VLAN L2 Multicast – MLD Snooping – IGMP Snooping – PIM Snooping L3 Features – IPv4 ARP/IPv6 ND: support up to 32K/16K4 – Gratuitous ARP – IP Interface – Loopback Interface – Proxy ARP – IPv6 Tunneling – VRRP v2/v3 – IP Helper L3 Routing – Supports 16K hardware routing entries shared by IPv4/IPv6 – Supports up to 32K hardware L3 forwarding entries shared by IPv4/IPv62 – Static Route – IPv4/IPv6 Default Route – PBR (Policy-based Route) – Null Route – Route Preference – Route Redistribution – Graceful Restart (GR) Helper – BFD (Bidirectional Forwarding Detection) – RIPv1/v2/ng L3 Multicast – IGMP/MLD Filtering QoS (Quality of Service) – 802.1p – 8 queues per port – Queue Handling – Congestion Control – 802.1Qbb Priority-based Flow Control (PFC) for 10 GbE port – Bandwidth Control – Policy Map – CoS based on: – Three Color Marker ACL (Access Control List) – ACL based on – Max. ACL entries – Time-based ACL Security – Port Security – Broadcast/Multicast/Unicast Storm Control – D-Link Safeguard Engine – DHCP Server Screening – Dynamic ARP Inspection – IP Source Guard – DHCP Snooping – IPv6 Snooping – Dynamic ARP Inspection (DAI) – DHCPv6 Guard – IPv6 Route Advertisement (RA) Guard – IPv6 ND Inspection – Duplicate Address Detection (DAD) – ARP Spoofing Prevention – L3 Control Packet Filtering – Unicast Reverse Path Forwarding (URPF) – Traffic Segmentation – SSL – SSH – BPDU Attack Prevention – DOS Attack Prevention – NetBIOS/NetBEUI filtering AAA – 802.1X Authentication – Web-based Access Control (WAC) – Compound Authentication – MAC-based Access Control (MAC) – Guest VLAN – Microsoft® NAP – Privilege Level for Management Access – RAIDUS and TACACS+ Authentication – Authentication Database Failover – RADIUS/TACACS+ Accounting Management – NTPv3/v4 – Precision Time Protocol (PTP) – Web-based GUI – Command Line Interface (CLI) – Telnet Server for IPv4/IPv6 access – Telnet Client for IPv4/IPv6 – SNMP – SNMP Trap – TFTP Client for IPv4/IPv6 – FTP Client for IPv4/IPv6 – IPv4 SFTP Server – RCP – System Log for IPv4/IPv6 Syslog Server – SMTP – RMONv1 – RMONv2 – Command Logging – LLDP/LLDP-MED – D-Link Discover Protocol (DDP) – DHCP Client option 12 – DHCP Auto-configuration – DHCP Auto-image – DHCP Relay option 60/61/62/18/37/125 – DHCP/DHCPv6 Local Relay – DHCP Server – DHCPv6 Prefix Delegation (PD) – Multiple Images/ Multiple Configurations – DNS Relay for IPv4/IPv6 – DNS Client for IPv4/IPv6 – Debug Command – Password Recovery/ Encryption – Ping/ Traceroute for IPv4/IPv6 – Microsoft® Network Load Balancing (NLB) – Switch Resource Management (SRM) – sFlow – D-Link License Management System (DLMS)
Otras Caracteristicas	– Dimensiones: 441 x 259.8 x 44 mm – Peso: 4.04 kg – EMI/EMC: CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Fecha Revisión	27-12-2017 por MSB

Regresa a la página anterior

D-Link DGS-3630-52TC Switch L3 44xGB 4xSFP 4x10GB en Switches armario

Name: D-Link DGS-3630-52TC Switch L3 44xGB 4xSFP 4x10GB en Switches armario
SKU: f61e449f0d23
Availability: BackOrder

2.193,00€

9 personas están viendo este producto ahora mismo

🔥 3 vendidos en las últimas 5 horas

D-Link DGS-3630-52TC Switch L3 44xGB 4xSFP 4x10GB, este producto de la marca D-Link se encuentra en Switches armario de Switches y Puntos acceso

Disponible para reserva

Añadir a lista de deseos

Pago seguro garantizado Pago seguro con tarjeta VISA

El pago es 100% SEGURO

SKU: f61e449f0d23

Categorías Redes, Switches armario, Switches y Puntos acceso

Etiquetas: D-Link, Switches armario, Switches y Puntos acceso Marcas D-Link Tiempo estimado de entrega:15 días

Descripción

Marca	D-Link
Modelo	DGS-3630-52TC/SI
Puertos	– 44 x 10/100/1000BASE-T – 4 x 1000BASE-T/SFP combo – 4 x 10 GbE SFP+ – Console Port: RJ45 and Mini USB console ports for out-of-band CLI management – Management Port: 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management – Alarm Port: 1 x RJ-45 – USB Port: 1 x USB 2.0 Type A
Despempeño	– Switching Capacity: 176 Gbps – Maximum Packet Forwarding Rate: 130.95 Mpps – Packet Buffer: 4 MBytes – MAC Address Table: 68K entries – IPv4 Routing Table: 16K entries – IPv6 Routing Table: 7K entries – IPv4 Forwarding Table: 32K entries – IPv6 Forwarding Table: 16K entries – Jumbo Frame Size: 12 KBytes
Características	Stackability – Physical Stacking – Virtual Stacking/Clustering of up to 32 units L2 Features – MAC Address Table : up to 68K entries4 – Flow Control – Spanning Tree Protocol – Jumbo Frame: up to 12 Kbytes – 802.1AX Link Aggregation – ERPS (Ethernet Ring Protection Switching) version 2 – Port Mirroring – Flow Mirroring – VLAN Mirroring – RSPAN – L2 Protocol Tunneling VLAN – 802.1Q – 802.1v Protocol-based VLAN – Double VLAN (Q-in-Q) – Port-based VLAN – MAC-based VLAN – Subnet-based VLAN – Private VLAN – VLAN Group – Multicast VLAN (ISM VLAN for IPv4/IPv6) – Voice VLAN – Auto Surveillance VLAN – VLAN Trunking – GVRP: Up to 4K dynamic VLANs – Asymmetric VLAN L2 Multicast – MLD Snooping – IGMP Snooping – PIM Snooping L3 Features – IPv4 ARP/IPv6 ND: support up to 32K/16K4 – Gratuitous ARP – IP Interface – Loopback Interface – Proxy ARP – IPv6 Tunneling – VRRP v2/v3 – IP Helper L3 Routing – Supports 16K hardware routing entries shared by IPv4/IPv6 – Supports up to 32K hardware L3 forwarding entries shared by IPv4/IPv62 – Static Route – IPv4/IPv6 Default Route – PBR (Policy-based Route) – Null Route – Route Preference – Route Redistribution – Graceful Restart (GR) Helper – BFD (Bidirectional Forwarding Detection) – RIPv1/v2/ng L3 Multicast – IGMP/MLD Filtering QoS (Quality of Service) – 802.1p – 8 queues per port – Queue Handling – Congestion Control – 802.1Qbb Priority-based Flow Control (PFC) for 10 GbE port – Bandwidth Control – Policy Map – CoS based on: – Three Color Marker ACL (Access Control List) – ACL based on – Max. ACL entries – Time-based ACL Security – Port Security – Broadcast/Multicast/Unicast Storm Control – D-Link Safeguard Engine – DHCP Server Screening – Dynamic ARP Inspection – IP Source Guard – DHCP Snooping – IPv6 Snooping – Dynamic ARP Inspection (DAI) – DHCPv6 Guard – IPv6 Route Advertisement (RA) Guard – IPv6 ND Inspection – Duplicate Address Detection (DAD) – ARP Spoofing Prevention – L3 Control Packet Filtering – Unicast Reverse Path Forwarding (URPF) – Traffic Segmentation – SSL – SSH – BPDU Attack Prevention – DOS Attack Prevention – NetBIOS/NetBEUI filtering AAA – 802.1X Authentication – Web-based Access Control (WAC) – Compound Authentication – MAC-based Access Control (MAC) – Guest VLAN – Microsoft® NAP – Privilege Level for Management Access – RAIDUS and TACACS+ Authentication – Authentication Database Failover – RADIUS/TACACS+ Accounting Management – NTPv3/v4 – Precision Time Protocol (PTP) – Web-based GUI – Command Line Interface (CLI) – Telnet Server for IPv4/IPv6 access – Telnet Client for IPv4/IPv6 – SNMP – SNMP Trap – TFTP Client for IPv4/IPv6 – FTP Client for IPv4/IPv6 – IPv4 SFTP Server – RCP – System Log for IPv4/IPv6 Syslog Server – SMTP – RMONv1 – RMONv2 – Command Logging – LLDP/LLDP-MED – D-Link Discover Protocol (DDP) – DHCP Client option 12 – DHCP Auto-configuration – DHCP Auto-image – DHCP Relay option 60/61/62/18/37/125 – DHCP/DHCPv6 Local Relay – DHCP Server – DHCPv6 Prefix Delegation (PD) – Multiple Images/ Multiple Configurations – DNS Relay for IPv4/IPv6 – DNS Client for IPv4/IPv6 – Debug Command – Password Recovery/ Encryption – Ping/ Traceroute for IPv4/IPv6 – Microsoft® Network Load Balancing (NLB) – Switch Resource Management (SRM) – sFlow – D-Link License Management System (DLMS)
Otras Caracteristicas	– Dimensiones: 441 x 259.8 x 44 mm – Peso: 4.04 kg – EMI/EMC: CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Fecha Revisión	27-12-2017 por MSB
